TB-9214 Request for Availablility
TB-9214, 60 VDC, 48-Pin, Temperature Input Module Terminal Block
Need an Official Quote?

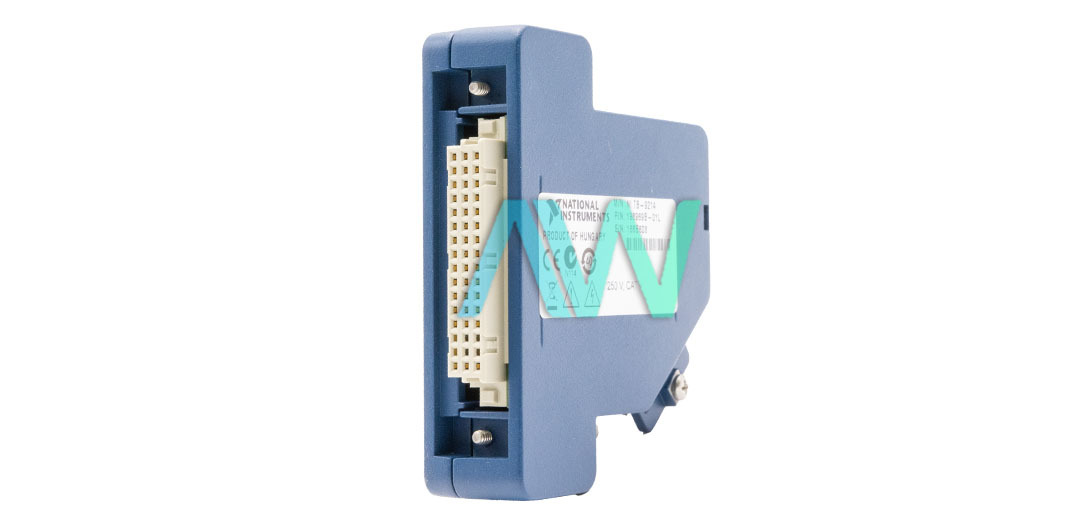

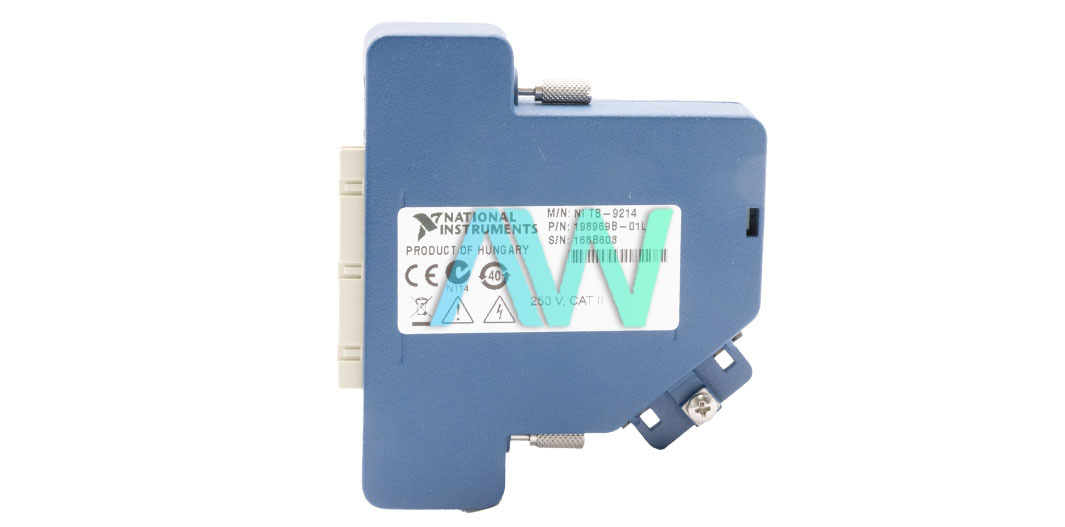

National Instruments TB-9214 Temperature Input Module Terminal Block
The TB-9214 (part number: 781511-01) from National Instruments is a temperature input module terminal block made for use with the NI-9214 C Series Temperature Input Module. By connecting the TB-9214 to the front connectors of the NI-9214, you can connect the signals of the module within different CompactRIO or CompactDAQ systems. With 60 VDC, the TB-9214 is designed to enhance your system accuracy and ensure a seamless installation process.
The TB-9214 can be effortlessly attached to the front connector of the NI-9214 thanks to its 48-Pin Female DIN connectors. This establishes a reliable connection for optimal performance. When connecting the TB-9124, it is important to avoid overtightening the jackscrews, as this may lead to complications. These screws have a maximum torque of 0.4 N·m (3.6 lb·in.)
To maintain accuracy and minimize thermal gradients near the front connector, please adhere to the following guidelines:
Opt for Small-Gauge Thermocouple Wire: Using small-gauge thermocouple wire significantly reduces heat transfer to or from the terminal junction. This step is crucial in achieving accurate readings.
Keep Thermocouple Wiring Together: To ensure consistent temperatures, it is advisable to run thermocouple wiring together in close proximity to the TB-9214. This practice helps maintain uniformity and accuracy in measurements.
Leverage the Foam Pad: If available, utilize the foam pad provided in the TB-9214 opening. This helps restrict airflow around the terminals, further minimizing thermal gradients and enhancing system accuracy.
The TB-9214 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the TB-9214 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the TB-9214 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the TB-9214!
| Model Name | TB-9214 |
|---|---|
| Part Number | 781511-01 |
| Part Type | Temperature Input Module Terminal Block |
| Maximum Torque | 3.6 lb·in |
| VDC | 60 |
| Connector Type | 48-Pin Female DIN |
| Calibration? | Yes |
| Warranty | Three Year Warranty |
| TB-9214 Manuals | PDFs Available for Download |
Associated part numbers for the TB-9214:
198969A-01L, 198969B-01L, 198969C-01L, 198969D-01L, 781511-01
National Instruments TB-9214 Frequently Asked Questions
Question: What is the function of the TB-9214 to the NI-9214 Temperature Input Module?
Answer: The TB-9214 helps you connect to the signals of the NI-9214 C Series Temperature Input Module for CompactRIO and CompactDAQ systems
Question: Can I use the TB-9214 with other NI modules?
Answer: No, this terminal block is specifically built for the NI-9214.
Question: What connector is on the TB-2124?
Answer: The TB-2124 features a 48-Pin Female DIN connector that corresponds with the front connector of the NI-9214.
Question: Does the TB-9214 support calibration?
Answer: Yes, you can calibrate the TB-9214 to different application parameters. If you need the TB-9214 calibrated, contact Apex Waves for options.
Question: What type of thermocouple wire should I use for the TB-9214?
Answer: Opt for Small-Gauge Thermocouple Wire: Using small-gauge thermocouple wire significantly reduces heat transfer to or from the terminal junction, thereby supporting uniformity and accuracy in measurements.
Why Buy From Apex Waves:
Verified
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
TB-9214
Test & Measurement Misc > National Instruments > Terminal Blocks
TB-9214, 60 VDC, 48-Pin, Temperature Input Module Terminal Block
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs
National Instruments TB-9214 Temperature Input Module Terminal Block
The TB-9214 (part number: 781511-01) from National Instruments is a temperature input module terminal block made for use with the NI-9214 C Series Temperature Input Module. By connecting the TB-9214 to the front connectors of the NI-9214, you can connect the signals of the module within different CompactRIO or CompactDAQ systems. With 60 VDC, the TB-9214 is designed to enhance your system accuracy and ensure a seamless installation process.
The TB-9214 can be effortlessly attached to the front connector of the NI-9214 thanks to its 48-Pin Female DIN connectors. This establishes a reliable connection for optimal performance. When connecting the TB-9124, it is important to avoid overtightening the jackscrews, as this may lead to complications. These screws have a maximum torque of 0.4 N·m (3.6 lb·in.)
To maintain accuracy and minimize thermal gradients near the front connector, please adhere to the following guidelines:
Opt for Small-Gauge Thermocouple Wire: Using small-gauge thermocouple wire significantly reduces heat transfer to or from the terminal junction. This step is crucial in achieving accurate readings.
Keep Thermocouple Wiring Together: To ensure consistent temperatures, it is advisable to run thermocouple wiring together in close proximity to the TB-9214. This practice helps maintain uniformity and accuracy in measurements.
Leverage the Foam Pad: If available, utilize the foam pad provided in the TB-9214 opening. This helps restrict airflow around the terminals, further minimizing thermal gradients and enhancing system accuracy.
The TB-9214 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the TB-9214 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the TB-9214 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the TB-9214!
| Model Name | TB-9214 |
|---|---|
| Part Number | 781511-01 |
| Part Type | Temperature Input Module Terminal Block |
| Maximum Torque | 3.6 lb·in |
| VDC | 60 |
| Connector Type | 48-Pin Female DIN |
| Calibration? | Yes |
| Warranty | Three Year Warranty |
| TB-9214 Manuals | PDFs Available for Download |
National Instruments TB-9214 Frequently Asked Questions
Question: What is the function of the TB-9214 to the NI-9214 Temperature Input Module?
Answer: The TB-9214 helps you connect to the signals of the NI-9214 C Series Temperature Input Module for CompactRIO and CompactDAQ systems
Question: Can I use the TB-9214 with other NI modules?
Answer: No, this terminal block is specifically built for the NI-9214.
Question: What connector is on the TB-2124?
Answer: The TB-2124 features a 48-Pin Female DIN connector that corresponds with the front connector of the NI-9214.
Question: Does the TB-9214 support calibration?
Answer: Yes, you can calibrate the TB-9214 to different application parameters. If you need the TB-9214 calibrated, contact Apex Waves for options.
Question: What type of thermocouple wire should I use for the TB-9214?
Answer: Opt for Small-Gauge Thermocouple Wire: Using small-gauge thermocouple wire significantly reduces heat transfer to or from the terminal junction, thereby supporting uniformity and accuracy in measurements.
TB-9214 PDF Manuals & Diagrams
TB-9214 PDF Manuals
NI 9214 GETTING STARTED GUIDE.PDF
TB-9214 DIMENSIONAL DRAWING.PDF
