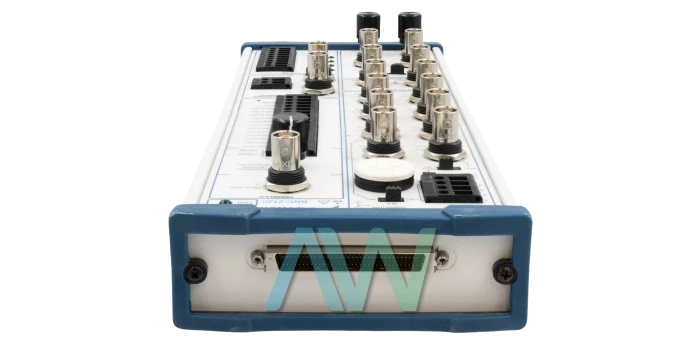

777960-01 BNC-2120 Connector Block | Apex Waves | Image

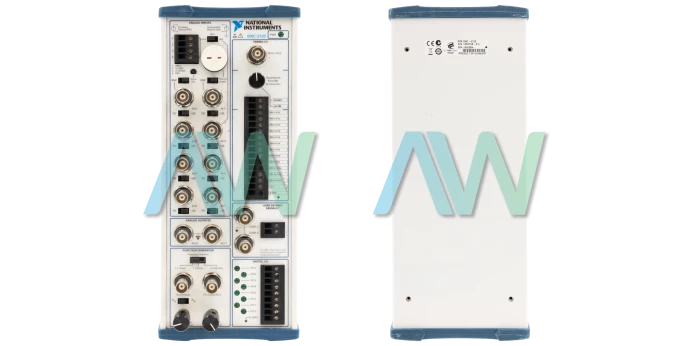

777960-01 BNC-2120 Connector Block | Apex Waves | Image
777960-01 New
777960-01 | Legacy, Refurbished and New Surplus
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping

Or speak to a sales representative for additional information:


777960-01 In Stock | Ships Today

777960-01, Onboard Function Generator, BNC Connector, BNC-2120 Connector Block
4.9/5 | 12 ratings
Fast Quote
Quoted Price

Need an Official Quote?

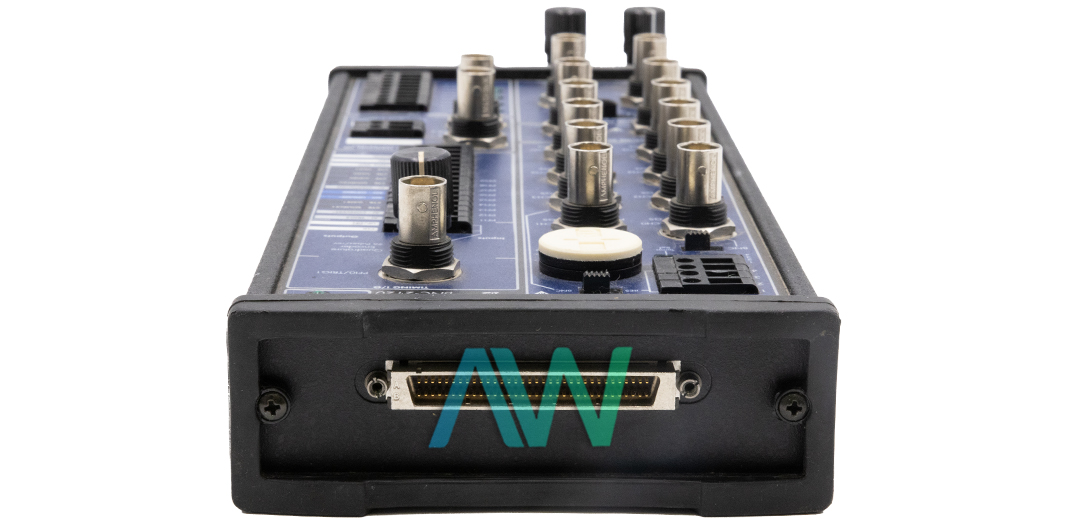

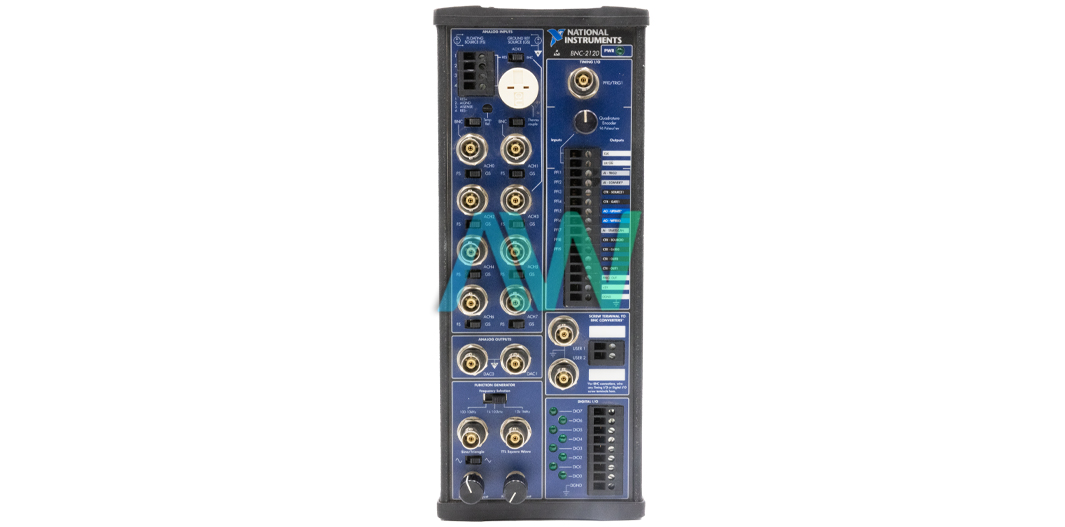

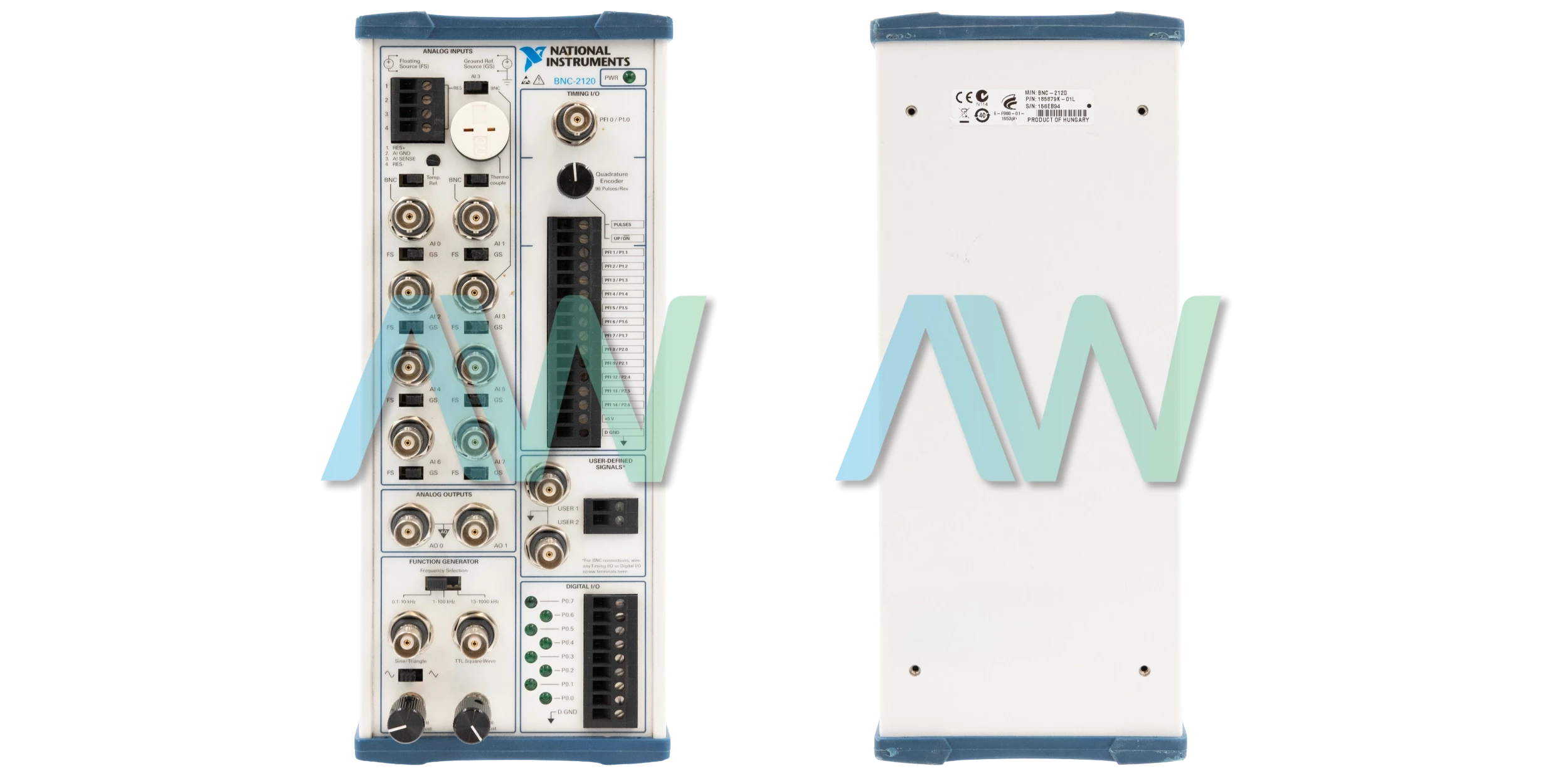

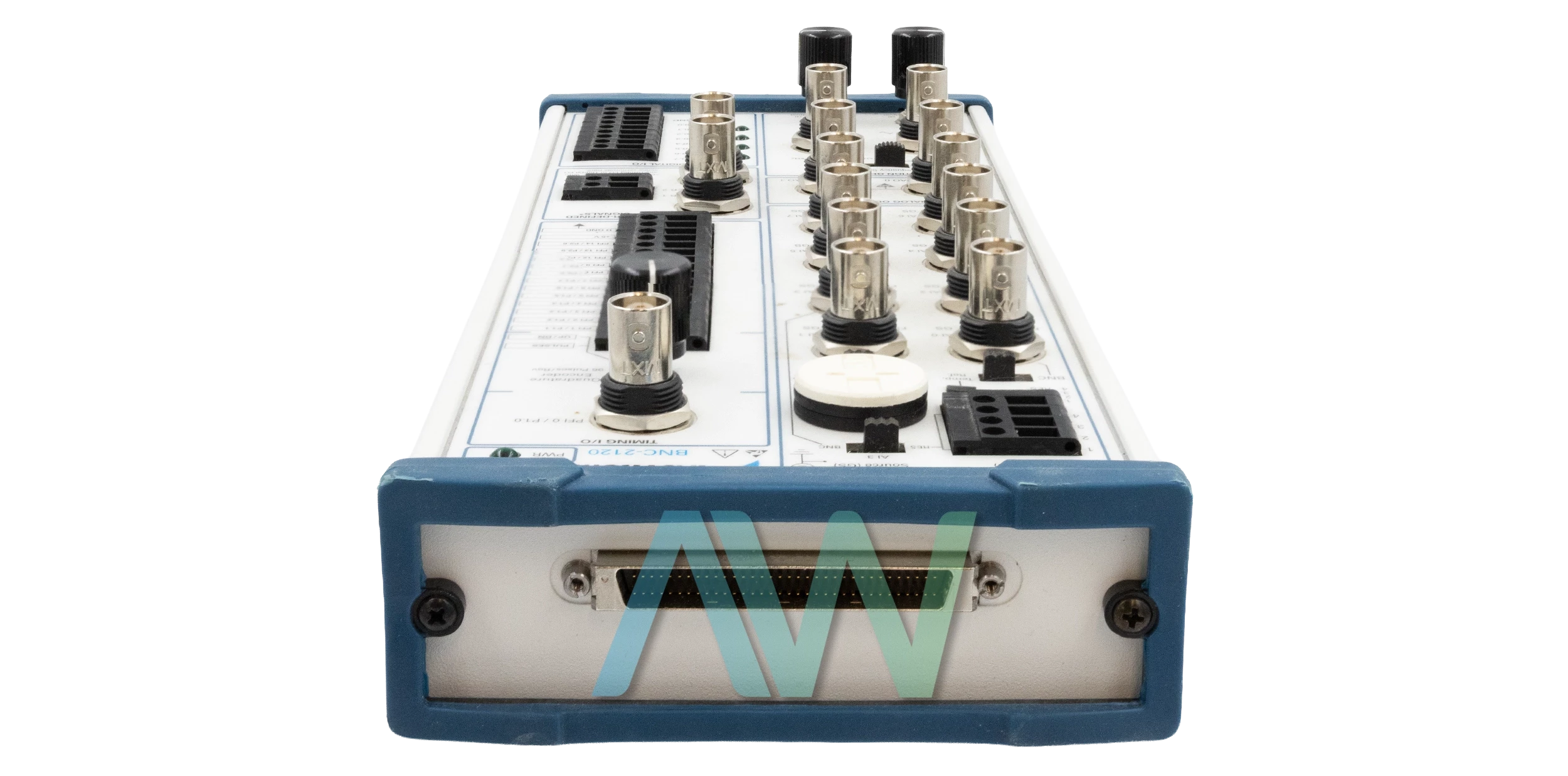

National Instruments 777960-01 Shielded Connector Block

National Instruments part number 777960-01 is an identifying part number for the BNC-2120 Shielded Connector Block. This Connector Block comes in a shielded enclosure and features BNC connectors. The NI 777960-01 allows easy connection to I/O signals and can handle multiple signals simultaneously due to its numerous BNC connectors. It supports connecting 8 differential analog input signals and includes two BNC connectors for analog output signals and digital input/output signals. For applications needing more digital I/O connections, it also provides screw terminals for additional digital signals.

This connector block is designed for interfacing with various National Instruments devices. It is compatible with National Instruments X Series, S Series, E Series, NI 671x, and M Series devices. The NI 777960-01 supports connections with Multifunction I/O DAQ modules and analog output devices. It features a 68-pin input/output connector for connecting to 68-pin devices and can also connect to 100-pin E Series devices. As a shielded connector block, it includes a quadrature encoder and onboard temperature reference. It also has a thermocouple connector and screw terminals for resistance measurement. Additionally, this connector block features a function generator capable of producing different types of signal waves.

Connect this connector block only to National Instruments E/M/S/X Series multifunction DAQ devices. Connecting it to any other device may damage the 777960-01, the DAQ device, or the host computer. The NI 777960-01 connector block offers various optional connections, including an uncompensated miniature thermocouple connector that mates with 2-prong miniature or subminiature connectors. It also features two screw terminals for resistors. For analog input, the block provides 8 differential channels accessible through 8 BNC connectors. The timing input/output connections include 14 screw terminals for 28–16 AWG wire and a single BNC connector for PFI 0/AI START TRIG.

Part Number777960-01
Model NameBNC-2120
Part TypeShielded Connector Block
Analog Input Channels8 differential
Analog Input Field Connections (default)8 BNC connectors
Analog Output Field Connections (default)2 BNC connectors
DIO Screw Terminals9 positions, 28–16 AWG wire
Resistor Measurement Range100 Ω to 1 MΩ
ThermocoupleUncompensated miniature connector, mates with 2-prong miniature or subminiature connector
Frequency Range100 Hz to 1 MHz

  777960-01 PDF Manuals
