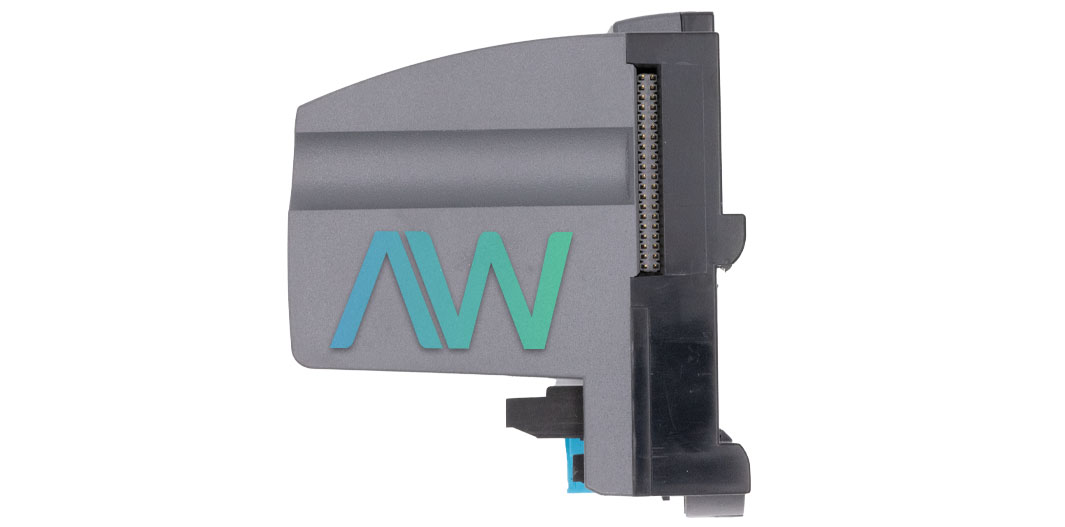

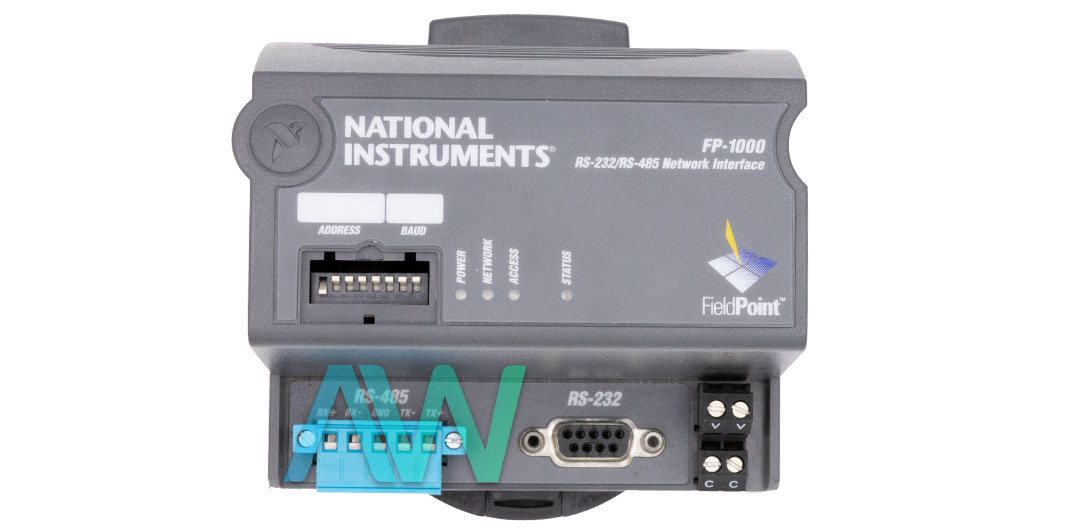

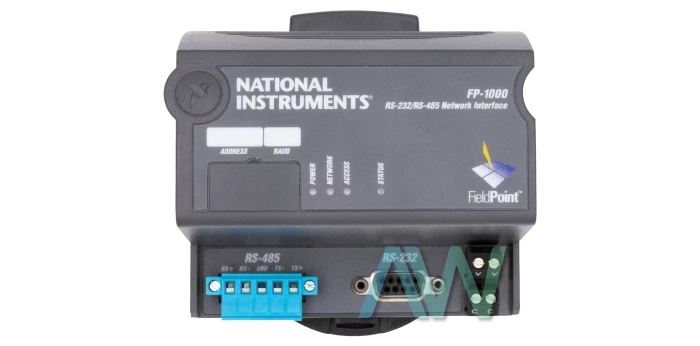

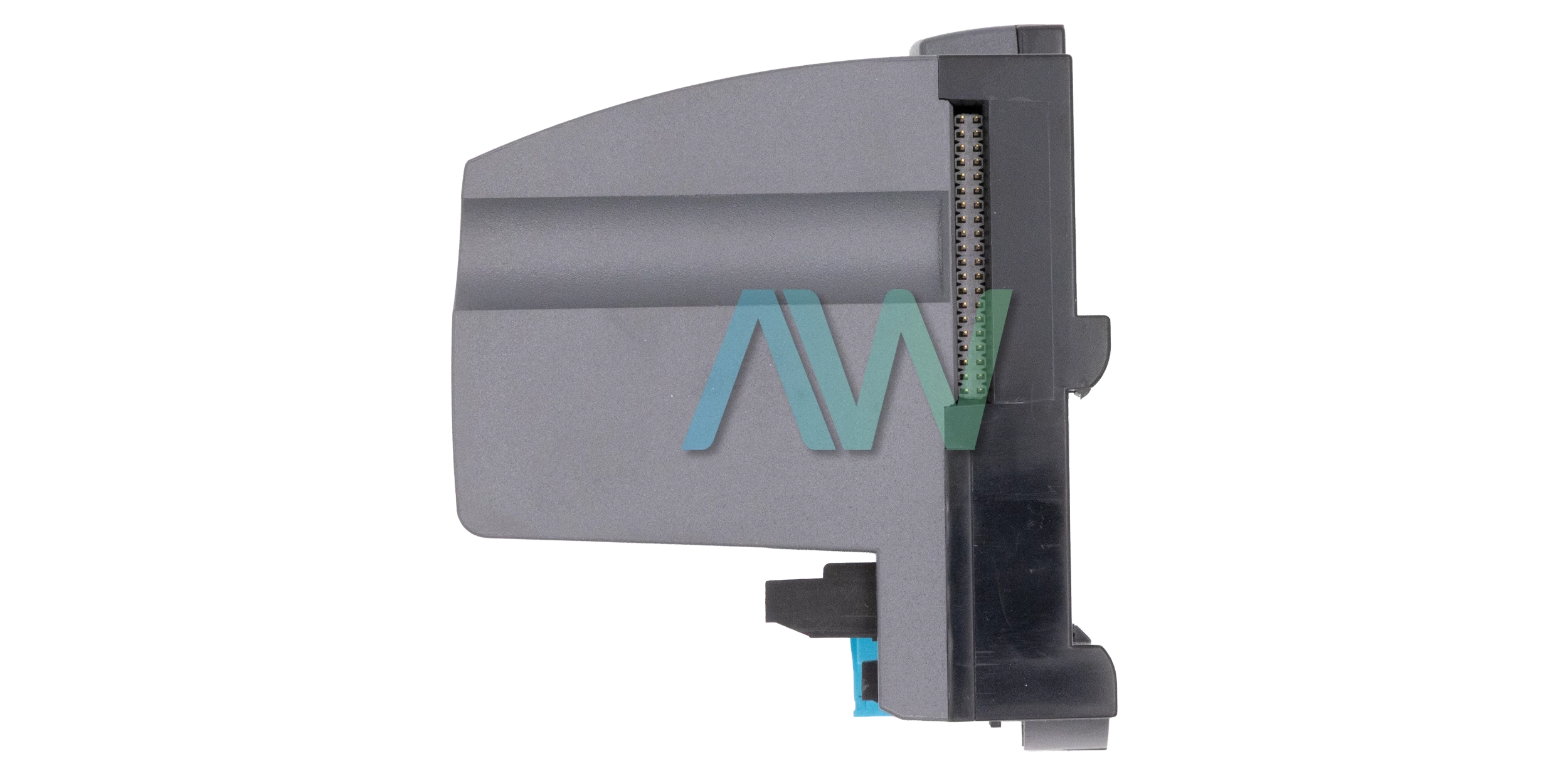

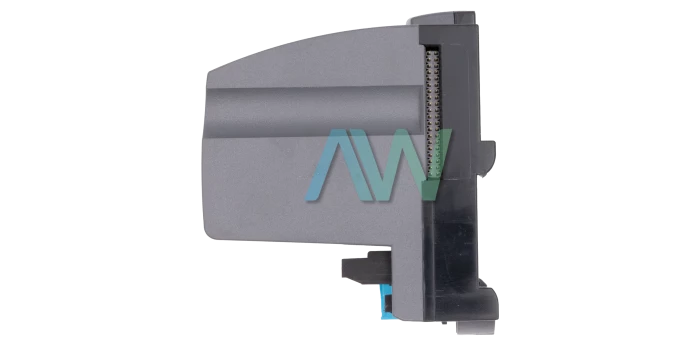

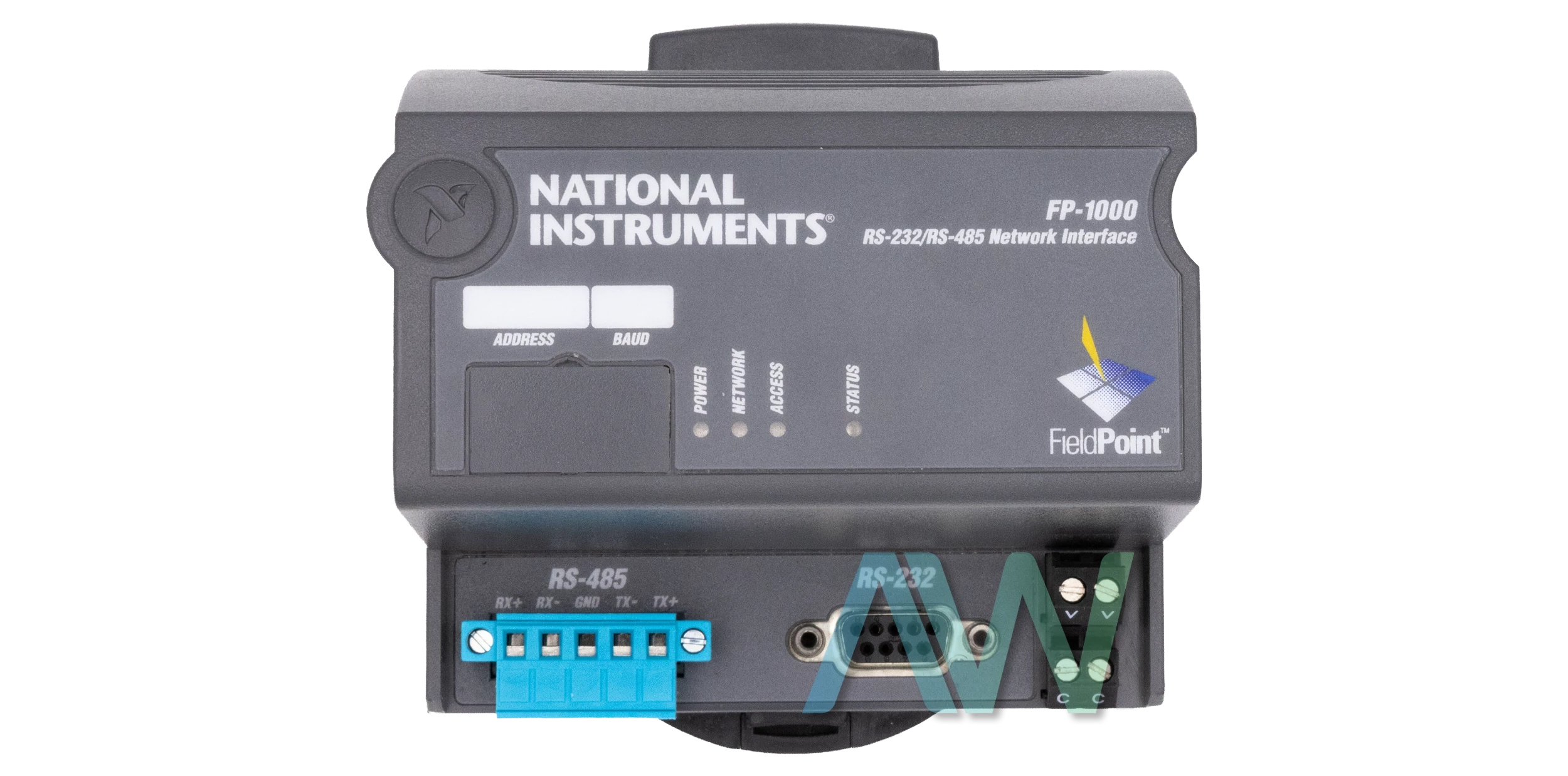

National Instruments 777517-00 Network Interface Module
National Instruments part number 777517-00 is an identifying part number for the FP-1000 a Network Interface for FieldPoint with a RS-485 Repeater Port and a RS-232 Serial Port. In addition, the module features 9 terminal bases per bank. The NI 777517-00 serves as a central interface module within the FieldPoint I/O system, supporting connectivity for over nine FieldPoint I/O modules via RS232. It can manage up to 25 network modules or 225 I/O modules on an RS-485 network. Facilitating communication between I/O modules and a host PC, the FP-1000 utilizes a local high-speed bus protocol.
It includes diagnostic and autoconfiguration features that simplify installation, operation, and maintenance. For RS232 FieldPoint systems, FieldPoint Explorer and server software are provided. Users have the choice between DIN rail mounting or direct board mounting for secure installation. Board mounting is more secure, but DIN rail mounting offers convenience depending on the application. Terminal bases can be installed without additional board mount accessories required by the 777517-00 Network Interface module. Baud rates are switch selectable, offering options of 300, 1200, 2400, 9600, 38400, 57600, and 115200. This module operates using the Optomux protocol, enabling compatibility with any application software that supports Optomux.
Once the FieldPoint bank, comprising network modules and I/O modules, is configured, users can seamlessly communicate with the FieldPoint modules using such software. This flexibility enhances the integration and usability of the 777517-00 in various industrial applications.This model features a watchdog clock, Hot-PnP plug and play functionality, direct connection to a PC serial port (RS232), and advanced diagnostics and maintenance capabilities.
The NI 777517-00 is managed using FieldPoint software, which includes utilities like FieldPoint Explorer for configuration, BridgeVIEW server, Lookout driver class, LabVIEW Vis, LabWindows/CVI functions, and an OPC server for seamless integration into various control and monitoring applications.
National Instruments has declared obsolete status for the 777517-00, however, it will remain available via Apex Waves.
| Part Number | 777517-00 |
|---|---|
| Model Nam | FP-1000 |
| Part Type | Network Interface for FieldPoint |
| Repeater Port type | RS-485 |
| Serial Port type | RS-232 |
| Baud rates | 300, 1200, 2400, 9600, 38400, 57600, 115200 (switch selectable) |
| Communication parameters | 1 start bit, 8 data bits, 1 stop bit, no parity |
