National Instruments 782522-01 PXI Remote Control Module

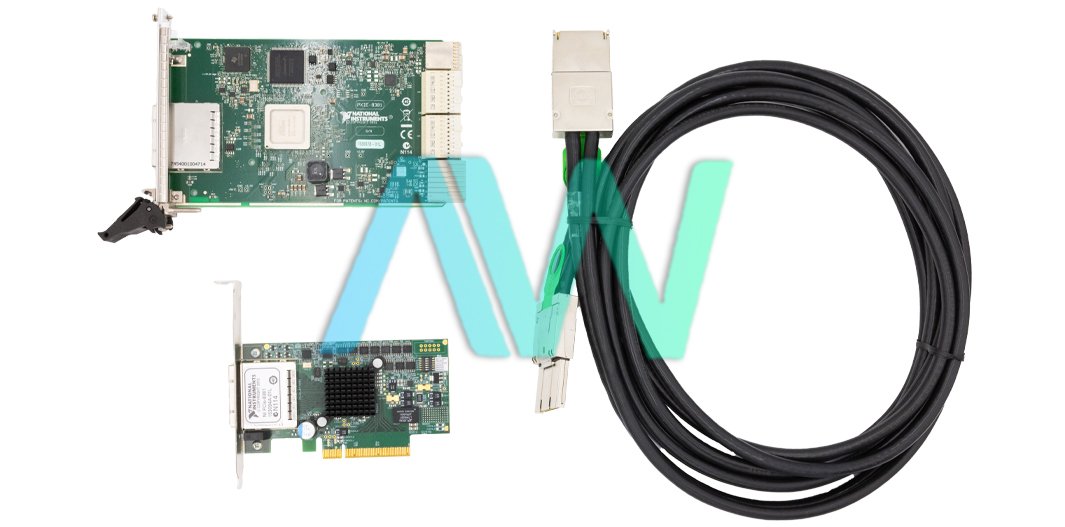

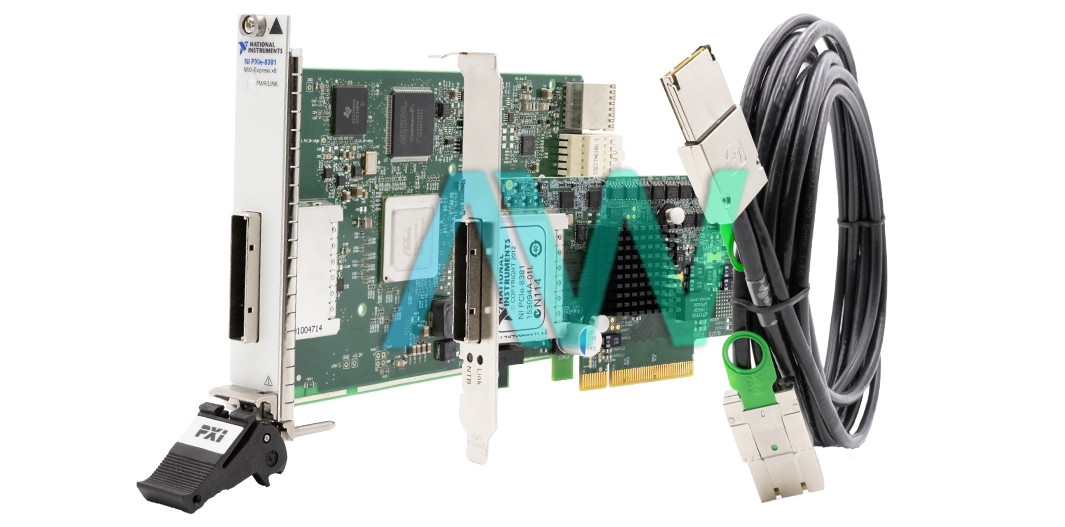

The part number 782522-01 from National Instruments is the identifying part number for the PXIe-PCIe8381 PXI Remote Control Module. This 782522-01 Remote Control Module is designed to meet the rigorous demands of measurement, automation, and control applications. This versatile module offers robust connectivity and exceptional data throughput, making it a key component in various industries. This module requires one slot and fully complies with the PXI express standards of x8 or x16. It is equipped with a 5 meter cable made up of copper enabling users to position their PXI Express modules and controllers in configurations that best suit their workspace or application requirements.

The 782522-01 is manufactured to work at an ambient temperature of 0 degrees Celsius to 55 degrees Celsius tested under the IEC-60068-2-1 standard. It should be stored at a suitable temperature of -20 degrees Celsius to 70 degrees Celsius tested under the IEC-60068-2-2 standards. Its operating relative humidity is 10% to 90%, noncondensing and its storage humidity level is 5% to 95%, noncondensing. It is required to be mounted at a maximum altitude of 2000 meters at 25 degrees Celsius ambient temperature and has a pollution degree of 2. It is intended for indoor use only where non conductive pollution occurs. This module does not feature ingress protection (IP) which means that it should not be used in dusty, and moist environments.

Physically, the 782522-01 has a compact structure with a dimension of 6.89 cm × 12.70 cm (2.71 × 5.00 in.) and weighs 0.06 kg (0.14 lb). The power requirements for this module are very flexible ensuring stable performance. It draws a typical current of 500 mA and a maximum current of 800 mA at +3.3 V. It requires 350 mA at +12 V with a maximum current of 500 mA.

This module also complies with many safety standards including the  IEC 61010-1, EN 61010-1, UL 61010-1, and CSA 61010-1  making it suitable for measurement, control, and laboratory use. It is also EMC compatible including the EN 61326-1 standards thus making this module resistant to electrical interferences and high noise levels.
