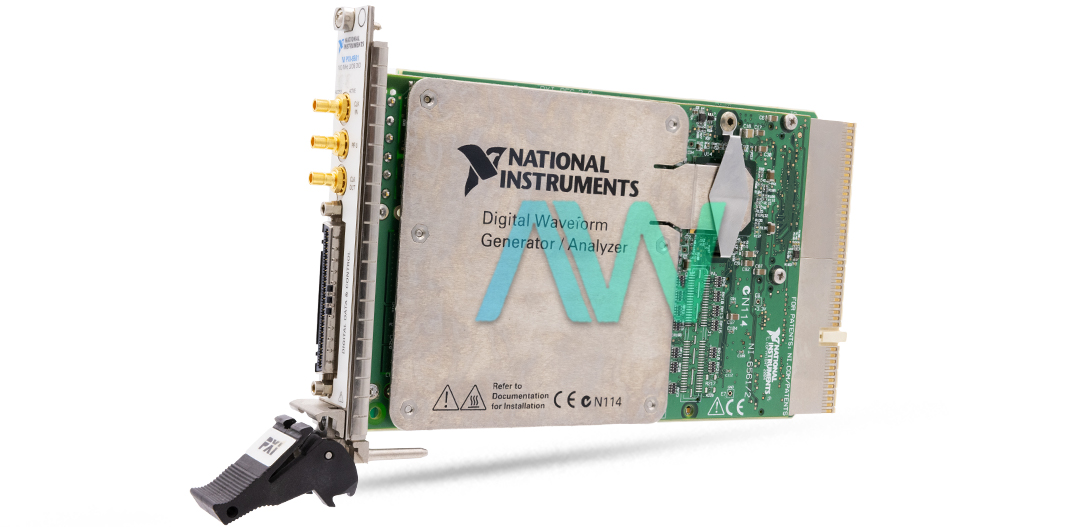

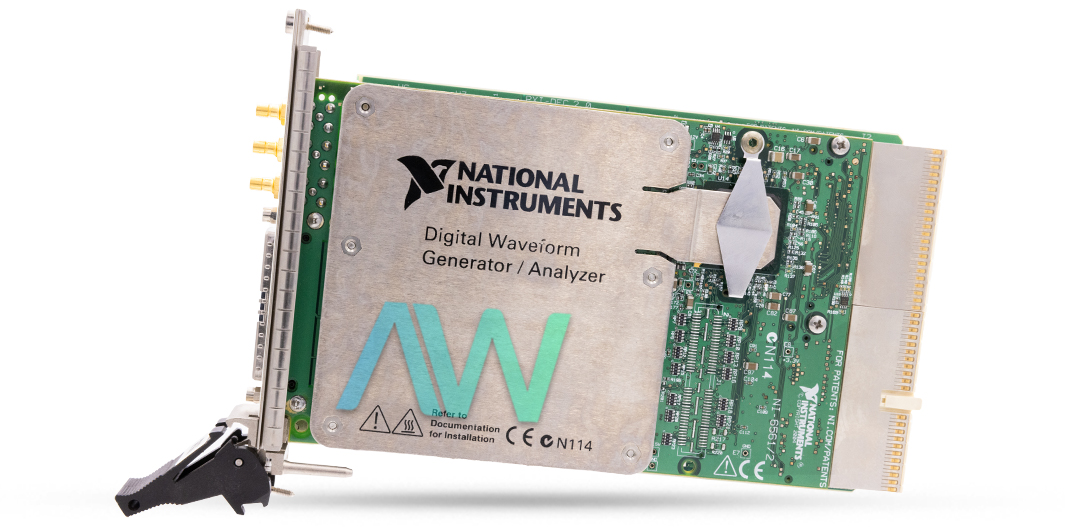

NI 778993-01 PXI Digital Waveform Instrument | Apex Waves | ImageNI 778993-01 PXI Digital Waveform Instrument | Apex Waves | Image778993-01 New778993-01 | Legacy, Refurbished and New Surplus
NI 778993-01 PXI Digital Waveform Instrument | Apex Waves | Image
NI 778993-01 PXI Digital Waveform Instrument | Apex Waves | Image
778993-01 New
778993-01 | Legacy, Refurbished and New Surplus
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping

Or speak to a sales representative for additional information:


778993-01 Request for Availablility

778993-01, 16 Channels, 200 MHz, PXI-6561 PXI Digital Waveform Instrument
4.6/5 | 14 ratings
Fast Quote
Quoted Price

Need an Official Quote?



National Instruments 778993-01 PXI Digital Waveform Instrument.

The part number 778993-01 from National Instruments is the identifying part number for the PXI-6561 PXI Digital Waveform Instrument. This module is part of the PXI Express (PXIe) platform, which offers high bandwidth and low latency for data transfer, making it ideal for applications requiring precise timing and synchronization. This Digital Waveform Instrument features 16 data channels enhancing data acquisition and improving efficiency by reducing the need of multiple devices for data processing. When configured for double data rate (DDR) mode, the module can transfer data on the rising and falling edges of the clock signal while with the single data rate (SDR) mode, it can transfer data on the rising edge only. This flexibility makes it suitable for a wide range of digital signal testing, including semiconductor device testing.

The 778993-01 Digital Waveform Instrument supports a variety of triggering and event capabilities, ensuring precise control over test execution. Triggers can be configured for start, pause, script, and other events, and can be routed to different channels or external devices. The module also includes programmable function interface (PFI) channels for additional flexibility in signal routing and control.

The 778993-01 Digital Waveform Instrument requires a power of 16.4 W maximum. It is designed to be operated at an ambient temperature of 0 degrees Celsius to 55 degrees Celsius and storage temperature of -20 degrees Celsius to 70 degrees Celsius with a relative humidity ranging from 10% to 90%, noncondensing and storage relative humidity of 5% to 95%, noncondensing. This model complies with IEC 61010-1, EN 61010-1, UL 3111-1 and UL 61010B-1 that makes it suitable and safe to be used in electrical equipment for measurement, control and laboratory use. This model is not equipped with an ingress protection rating, thus it should not be used in environments where dust, and moisture

In terms of software, the 778993-01 Digital Waveform Instrument is compatible with NI-HSDIO driver software, which provides a comprehensive API for configuring and controlling the module. The recommended software supports by this model is LabVIEW, Lab Windows/CVI, and NET, enabling seamless incorporation into automated test systems.

Part Number778993-01
Model NamePXI-6561
Part TypePXI Digital Waveform Instrument
Channels16
Maximum Clock Rate200 MHz
Signal TypesSingle-ended, Differential (LVDS)
Data MemoryDeep onboard memory for long waveform sequences
Software CompatibilityNI LabVIEW and other software environments
Operating Temperature0 to 55 degrees Celsius
Storage Temperature-20 to 70 degrees Celsius
