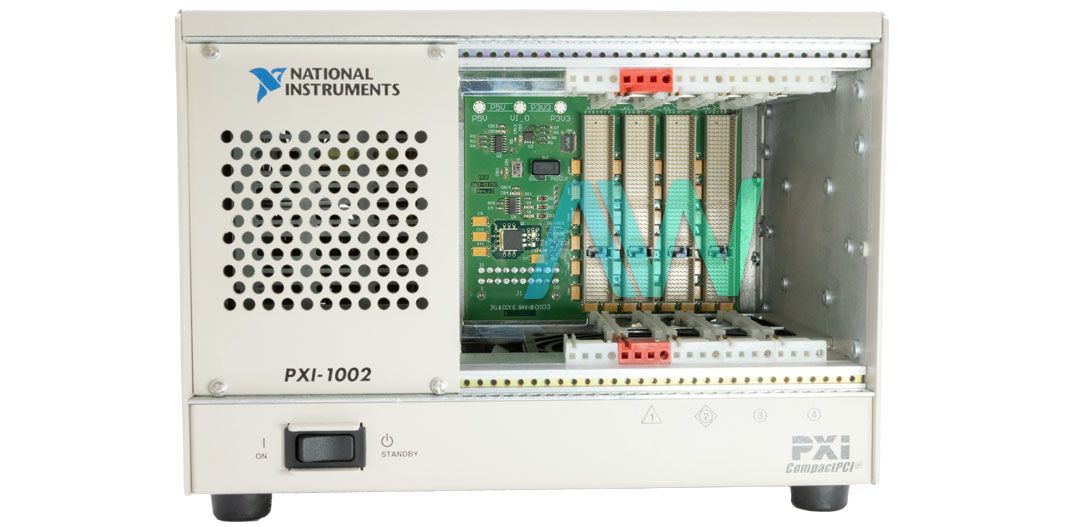

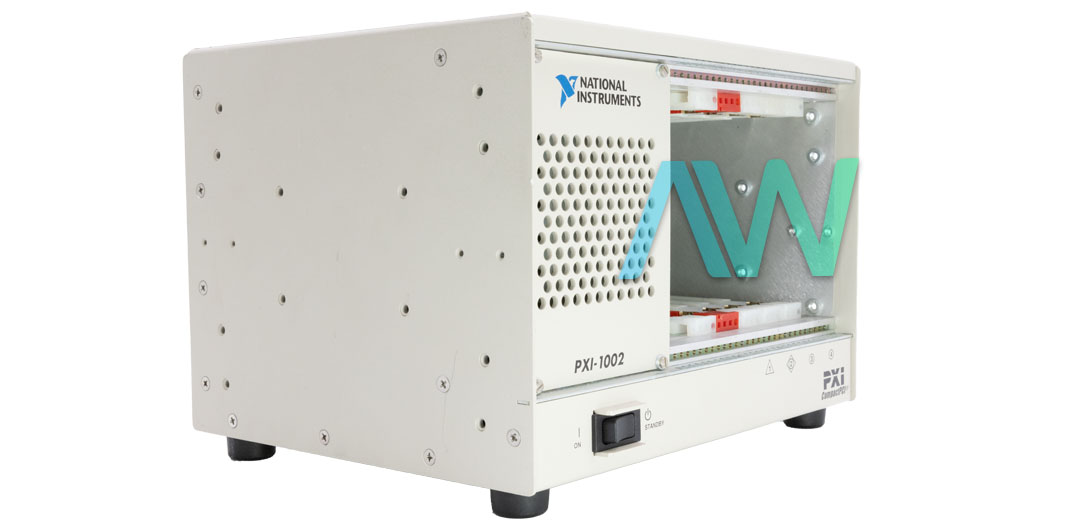

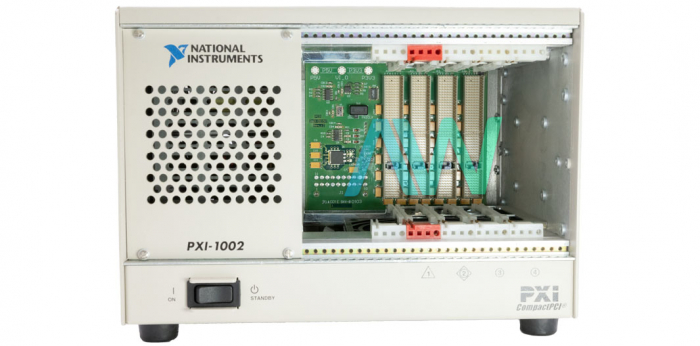

National Instruments 778114-01 PXI Chassis

The part number 778114-01 from National Instruments is the identifying part number for the PXI-1002 PXI Chassis. This chassis features a high-performance 4 PXI slots supporting both PXIe and PXI modules with 3 controller expansion slots. It features a high power backplane system that is UL 94 V-0 rated and equipped with backplane connectors that conform to IEC 917 and IEC 1076-4-101, UL 94 V-0 rated. This chassis has an input voltage rating of 180 to 265 VAC and an input frequency range of 47 to 63 Hz. The 778114-01 also offers 170 W of maximum usable output power.

For internal cooling, the 778114-01 PXI Chassis features fan cooling with forced air circulation through two 60 CFM fans with a high/auto speed selector and module slot airflow direction from the bottom of the module to the top of the module. The design aims to provide filtered air with a total cooling capacity of 170 W. The 778114-01 PXI chassis is designed to operate with 85,000 hours of mean time between failures (MTBF), thus increasing the reliability of the PXI chassis. Apart from that, this PXI chassis can be installed in different applications, as it is offered with an optional rack mount kit for the installation of the chassis in a 19-inch rack.

The 778114-01 is designed to work at an ambient temperature of 0 degrees Celsius to 50 degrees Celsius with an operating humidity of 10% to 90%, noncondensing, and a suitable storage temperature of -20 degrees Celsius to 70 degrees Celsius with a relative storage humidity range of 5% to 95%, noncondensing. The 778114-01 is made to operate under harsh working conditions with an operational shock of 30 g peak, half-sine, 6 ms pulse, and operational random vibration of 10 to 60 Hz, 0.5 grms, and non-operating vibration of 10 to 60 Hz, 1.0 grms. This PXI chassis is also compliant with safety standards, including EN 61010-1, making it safe for use in laboratory environments, and EN 61326, preventing electrical interference and thus maintaining the efficiency and accuracy of the 778114-01 PXI chassis.

Part Number778114-01
Model NamePXI-1002
Part TypePXI Chassis
Input voltage90 to 135/180 to 265 VAC
Input frequency47 to 63 Hz
Number of PXI slots4
Dimensions21.3 by 25.7 by 19.1 cm (8.4 by 10.1 by 7.5 in)
Weight4.3 kg [9.5 lb]
Ambient operating temperature range0 to 50 °C
Ambient storage temperature range-20 to 70 °C
