National Instruments 781033-01 PXI Controller

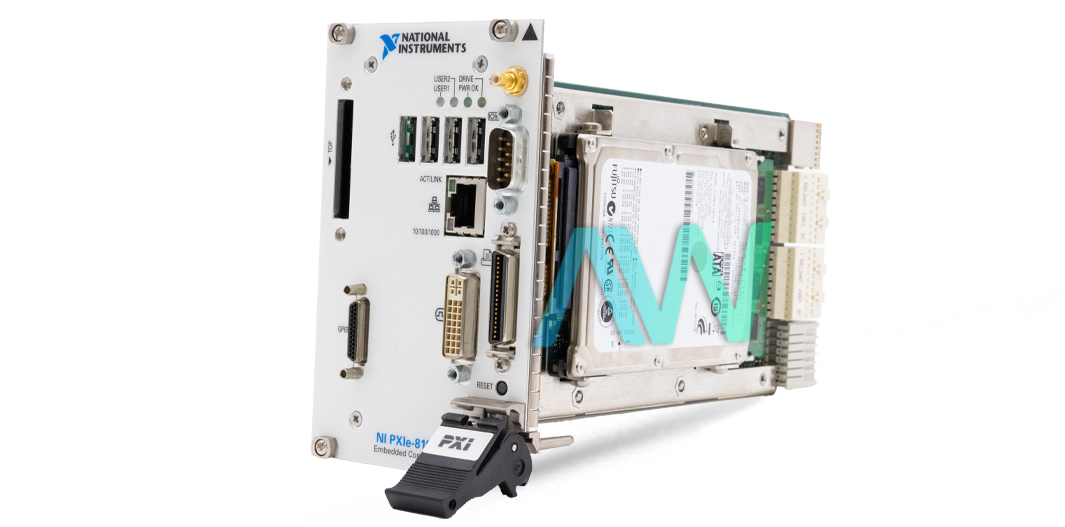

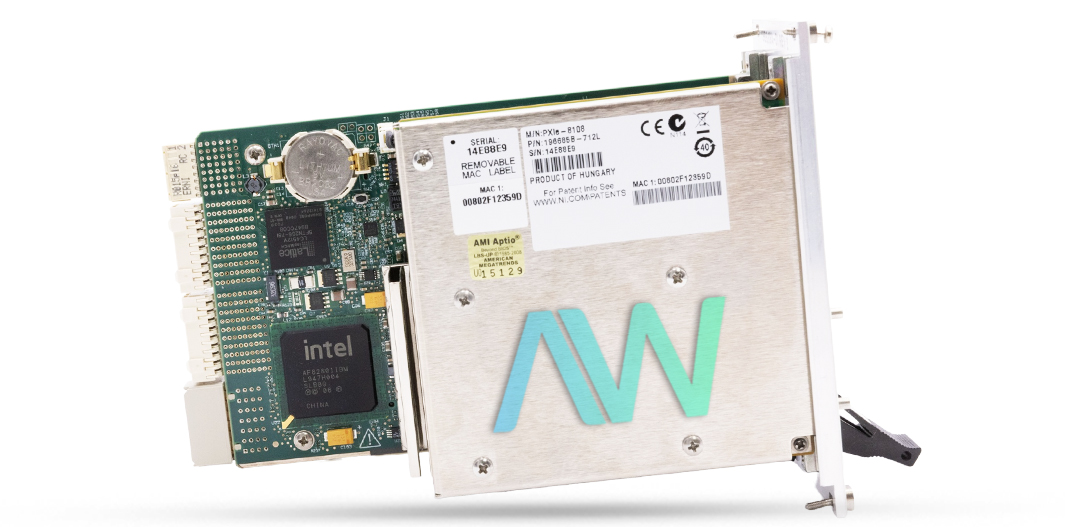

The part number 781033-01 from National Instruments is the identifying part number for the PXIe-8108 PXI Controller. The 781033-01 PXI Controller features an Intel Core 2 Duo T9400 processor, with a processing frequency of 2.53 GHz. The controller supports up to 4 GB of DDR2 RAM, allowing it to perform most of the tasks without any major hiccups or process errors.

The PXI Controller features 4 high-speed USB 2.0 ports, 2 Gigabit Ethernet ports, and a GPIB IEEE 488.2 interface for communication with different types of instruments compatible with the PXI series of controllers. The 781033-01 also features a DVI-I port for video output, a COM port for serial communication, and an ExpressCard/34 slot for further expansion.

The 781033-01 Controller has an 80 GB SATA hard drive, which can be used for storage and for installing operating systems, application software, and data. The SATA interface ensures fast data transfer rates, supporting efficient read and write operations. The device features an integrated Intel graphics controller, which supports the DVI-I video output allowing for high-quality video output suitable for use with modern digital and analog displays. The module also supports advanced timing and synchronization features, crucial for precise measurement and control applications by generating necessary clock signals. It features an onboard 100 MHz differential system reference clock and 3 differential star trigger buses, allowing accurate synchronization between all the connected modules.

The controller operates efficiently within a PXI Express chassis, drawing power directly from the PXI Express backplane. It requires a +12 Volts DC supply and consumes a maximum of 45 Watts. The 781033-01 PXI Controller is designed to operate within a temperature range of 0 degrees Celsius to 50 degrees Celsius and can be stored at temperatures ranging from -20 degrees Celsius to 70 degrees Celsius. It supports operating humidity levels from 10 % to 90 % RH, non-condensing. The 781033-01 meets international safety and electromagnetic compatibility (EMC) standards, ensuring reliable performance in various environments. It complies with standards such as IEC 61010-1 and EN 61326-1.  The board has the dimensions of a Four-wide 3U PXI Express module and weighs approximately 0.983 kg (2.17 lb).
